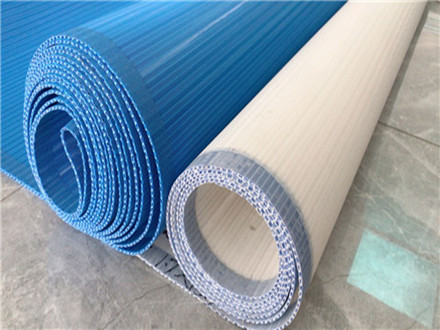

Dryer Fabric Belt for Print Paper Machinery

Description inquiry
Dryer Fabric Belt for Print Paper Machinery ,(forming fabrics, dryer fabrics), filter belts are usually made of abrasive resistant polyester that is high quality polyester monofilament in 100% PET.

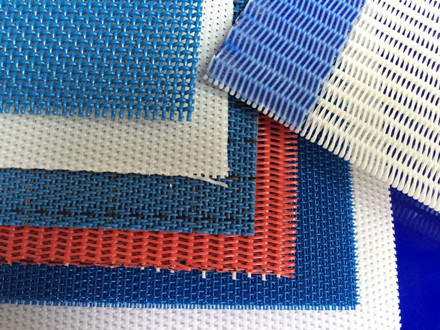

Weave spiral with or without stuffer yarns which are widely used filter press fabric for paper machine clothing in paper pulp washing and drying.

Applied to press types:  of high-grade printing paper, newsprint, technical paper, packaging paper, high-grade paper board etc.


Loop Types of Press Filter Mesh Belts:
Type Specification of
single loop(mm)
Monofilament Dia.
(mm)
Strength
(N/cm)
Thickness
(mm)


Weight
(m2/kg)


Air permeation
m3/m2h
spiral loop Threading
Super loop 4.8 x 10 0.9 1.1 2300 3.03 1.64 21000
Large loop 3.8 x 7.0 0.68 0.9 2000 2.45 1.40 18000
Medium loop 3.5 x 6.0 0.68 0.9 2000 2.45 1.31 16000
Small loop 3.2 x 5.2 0.5 0.8 1800 1.87 0.97 15000
