Our own belt fastener clippers all are 316 stainless steel, models have are # 25, # 1, UCM36# (width 2 "to 12") and the hooks for PVC belt are G1 # G2 # G3 #.
L-061 25 # It is the biggest advantage of the hooks that it requires no binder, and easy to operate.
Our luandry belt fasteners are hard. The special structure ensures the fasteners not pull out
wire diameter Φ 0.6mm. Applied to cotton feed Belting, polyester feeding belt.
Standard size : 2” (200 per box)
3” (200 per box)
4” (100 per box)
6” (48 per box)
8” (48 per box）
12”(12 per box）

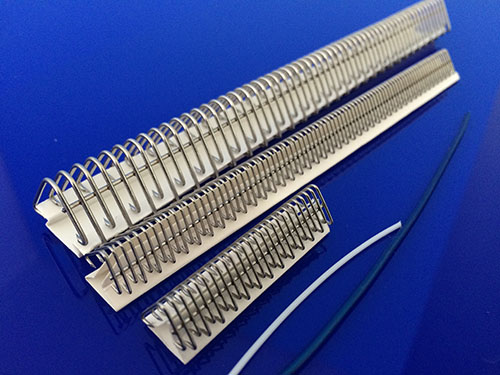

L-062 1# hook, wire diameter Φ 1.0mm,used on thick ironer belting and non-skid pvc ,characteristic is welded common bar.
Standard size : 6” (24 per box)
8” (12 per box)
12"(12 per box)
| Model interchange |
Belt Thickness |
Wire Diameter |
Number/Box |
Packing,weight |
Remark |
| B-061(#25) |
0.5mm-2.2mm |
0.6mm 0.025'' |
50(2'')W*200PC |
19*12*8cm |
0.45kg |
| 75(3'')W*200PC |
19*15*9cm |
0.65kg |
| 100(4'')W*100PC |
18*11*7cm |
0.45kg |
| 150(6'')W*48PC |
31*6*5cm |
0.4kg |
| 200(8'')W*48PC |
|
|
| 300(12'')W*12PC |
|
|
| B-062(#1) |
2.0mm-4.5mm |
1.0mm 0.040'' |
150(6'')W*24PC |
17*7*6cm |
0.5kg |
| 200(8'')W*12PC |
22*7*6cm |
0.5kg |
| 300(12'')W*12PC |
|
|
